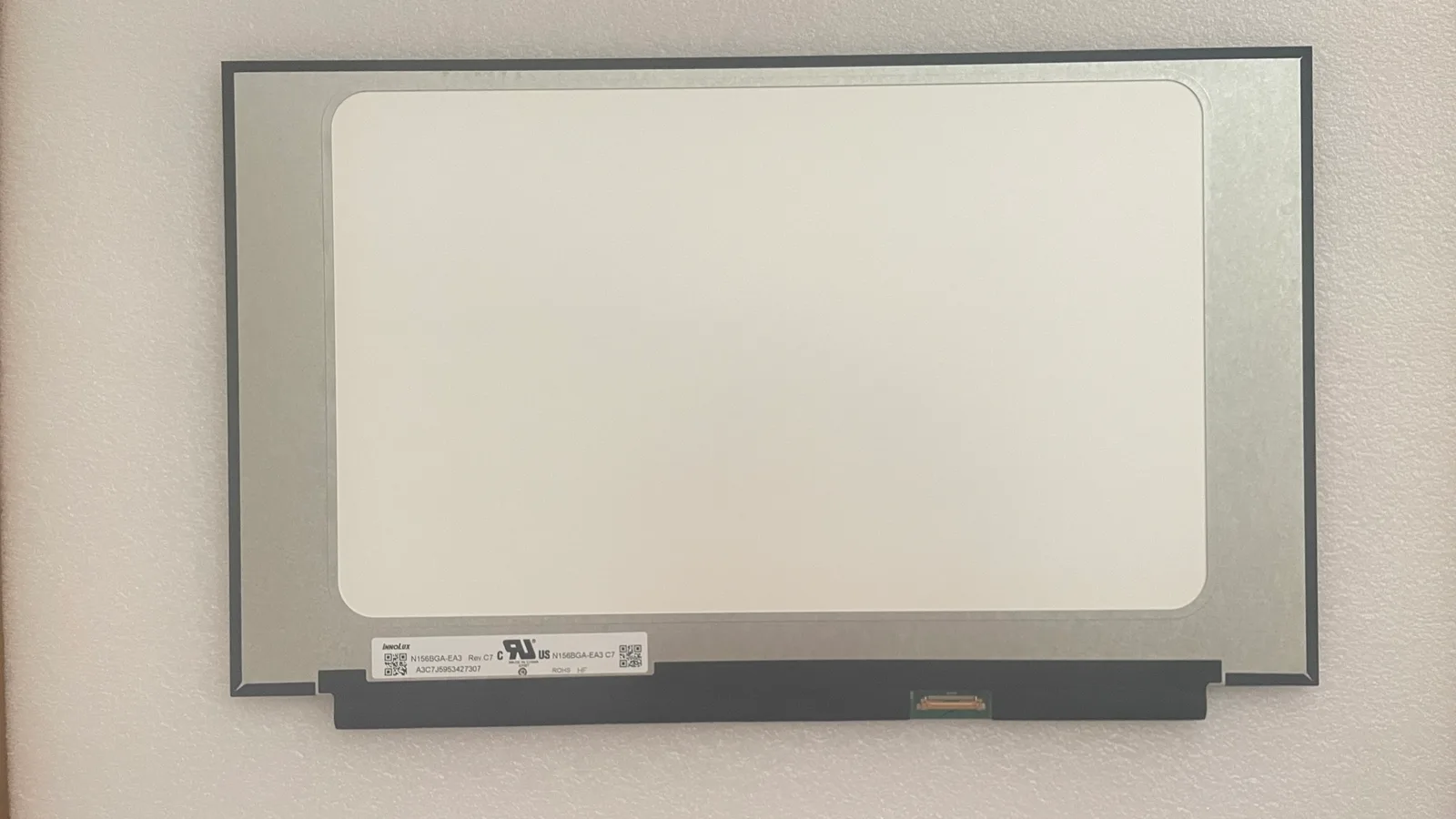

N156BGA-EA3
15.6-inch Slim 30-pin HD LCD Panel
N156BGA-EA3 is a 15.6-inch slim HD LCD panel with 1366 × 768 resolution, a matte anti-glare surface, a 30-pin eDP interface, no mounting brackets, and a 60 Hz refresh rate. It uses a narrow slim design with a flat PCBA profile of 3.2 mm or less.
- Screen size
- 15.6 inch
- Resolution
- 1366 × 768
- Panel type
- TN
- Connector
- EDP
- Pin count
- 30
- Touch
- No
- Availability
- Available on request
- Minimum order
- 10
Technical specifications
- Screen size
- 15.6 inch
- Resolution
- 1366 × 768
- Panel type
- TN
- Connector
- EDP
- Pin count
- 30
- Touch
- No
- Brightness
- 220 nits
- Refresh rate
- 60 Hz
- Surface
- Matte / Anti-Glare (3H)
- Backlight
- LED
Product specification manual
PDF document
N156BGA-EA3 Product Specification
2.62 MB
