Notebook LCD Panels · AXVISION
N156HCA-E5B
15.6-inch Slim 30-pin FHD IPS LCD Panel

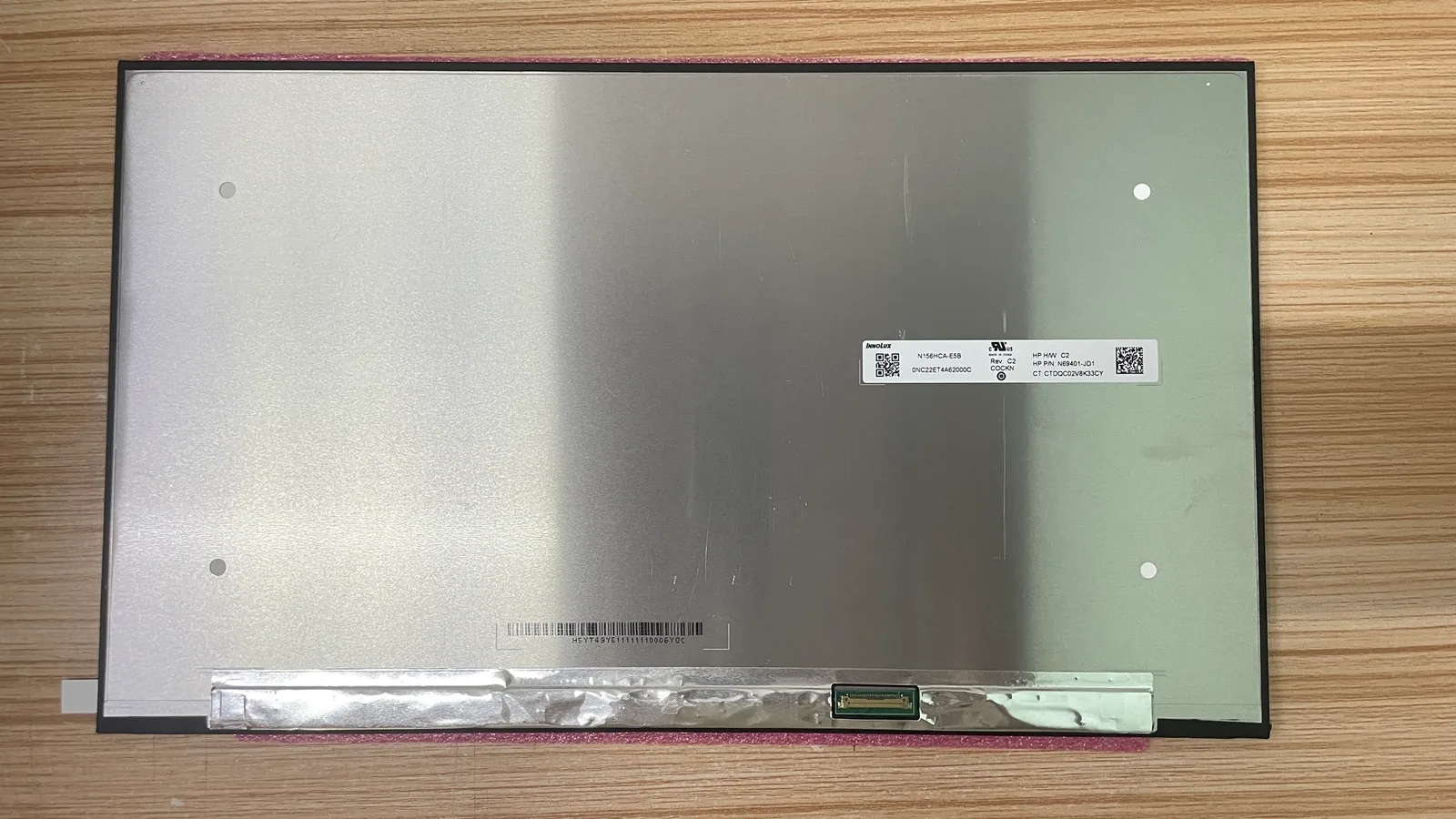

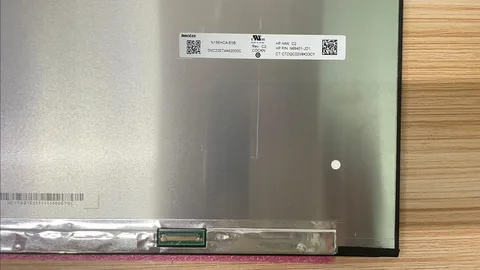

N156HCA-E5B is a 15.6-inch slim FHD IPS LCD panel with 1920 × 1080 resolution, a matte anti-glare surface, a 30-pin eDP interface, and no mounting brackets. It delivers 250 nits brightness, a 60 Hz refresh rate, LED backlighting, and a narrow 3.2 mm panel profile.
- Screen size
- 15.6 inch
- Resolution
- 1920 × 1080
- Panel type
- IPS
- Connector
- EDP
- Pin count
- 30
- Touch
- No
- Availability
- Available on request
- Minimum order
- 10
Technical specifications
- Screen size
- 15.6 inch
- Resolution
- 1920 × 1080
- Panel type
- IPS
- Connector
- EDP
- Pin count
- 30
- Touch
- No
- Brightness
- 250 nits
- Refresh rate
- 60 Hz
- Surface
- Matte / Anti-Glare (3H)
- Backlight
- LED
Product specification manual
PDF document
N156HCA-E5B Product Specification
4.43 MB
