Notebook LCD Panels · AXVISION
N156HRA-GAA
15.6-inch Slim 40-pin FHD 120 Hz IPS LCD Panel

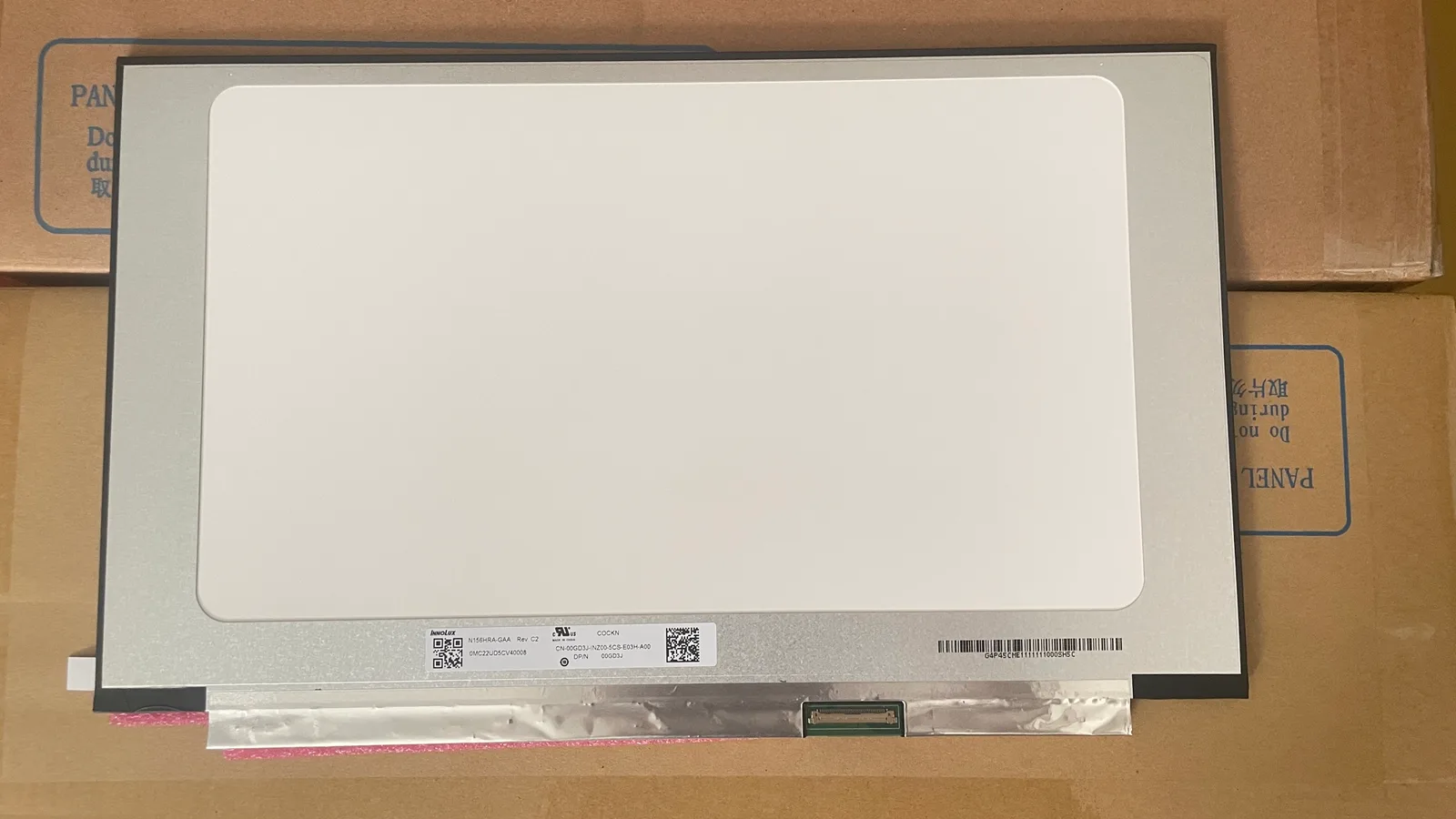

N156HRA-GAA is a 15.6-inch slim FHD IPS LCD panel with 1920 × 1080 resolution, a matte anti-glare surface, a 40-pin eDP 1.3 interface, and no mounting brackets. It delivers 250 nits brightness, a 120 Hz refresh rate, LED backlighting, 16.7 million colors, and a slim 3.2 mm maximum panel profile.
- Screen size
- 15.6 inch
- Resolution
- 1920 × 1080
- Panel type
- IPS
- Connector
- EDP
- Pin count
- 40
- Touch
- No
- Availability
- Available on request
- Minimum order
- 10
Technical specifications
- Screen size
- 15.6 inch
- Resolution
- 1920 × 1080
- Panel type
- IPS
- Connector
- EDP
- Pin count
- 40
- Touch
- No
- Brightness
- 250 nits
- Refresh rate
- 120 Hz
- Surface
- Matte / Anti-Glare (3H)
- Backlight
- LED
Product specification manual
PDF document
N156HRA-GAA Product Specification
3.11 MB
